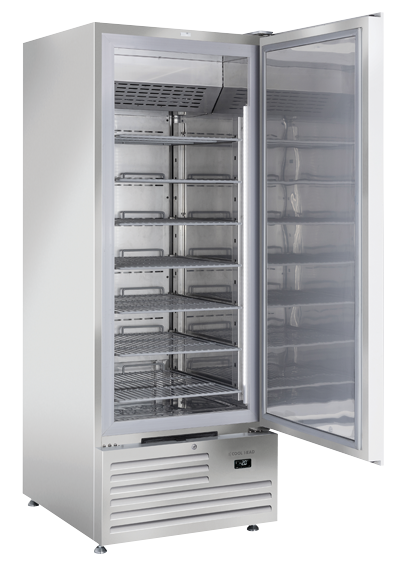

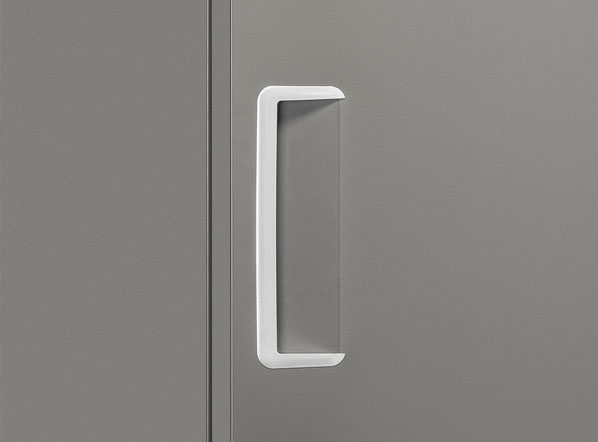

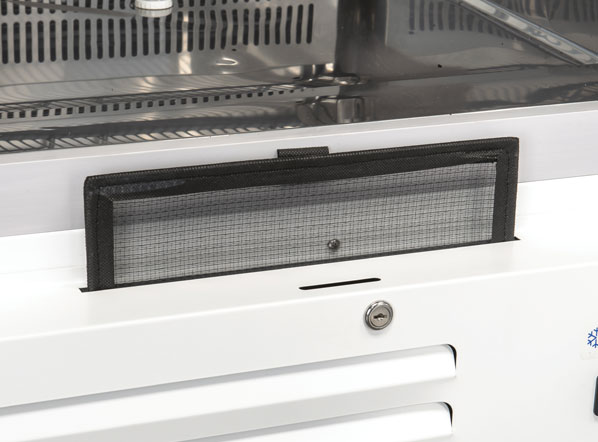

With a clean design, this product has been developed to store and preserve ice-cream. It comes in stainless steel finish, with its engine located at the bottom side to provide a more comfortable goods storage-system. The GEX 688V model is a perfect combination of technological improvements and manufacturing experience, fitted with foamed door handle, self-closing door, digital controller with open-door and high-temperature alarm to avoid energy waste. This model is supplied with 10 adjustable shelves GN2/1, in order to store 46 GN1/3 ice cream pans (150mm – Depth) or 58 5L ice cream pans (360x165X120 mm), ventilated cooling system, eco-friendly gas R290 and 80mm insulation foam on each side to ensure optimum energy-saving. To complete the high-end features list, it comes with removable filter, internal vertical LED light and lock fitted as standard; as well as reversible door and height-adjustable feet on demand.
GN2/1 Freezer upright cabinet
Stainless Steel exterior and interior
Ventilated Cooling

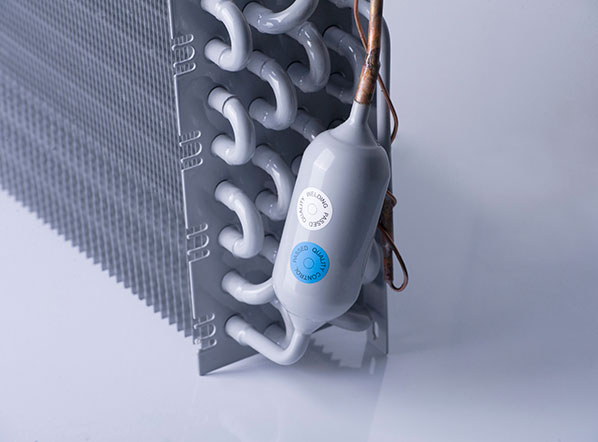

Evaporator and condenser with anti-corrosion treatment
Bottom side engine room (for comfortable storage in the cabinet)
Hot gas defrost system

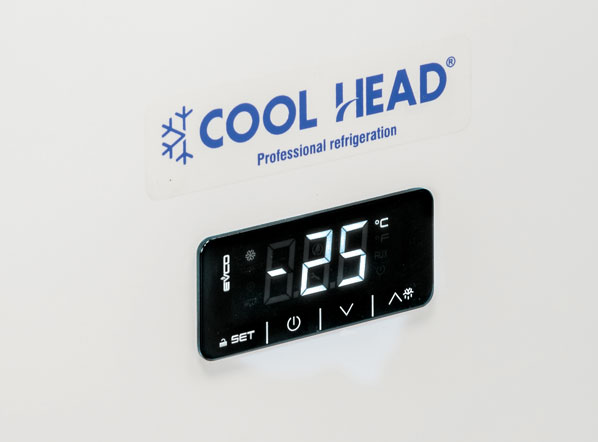

Digital thermostat with “opening door” and “High temperature” alarm
Foaming Agent Cyclopentane (80mm)
Removable Gasket

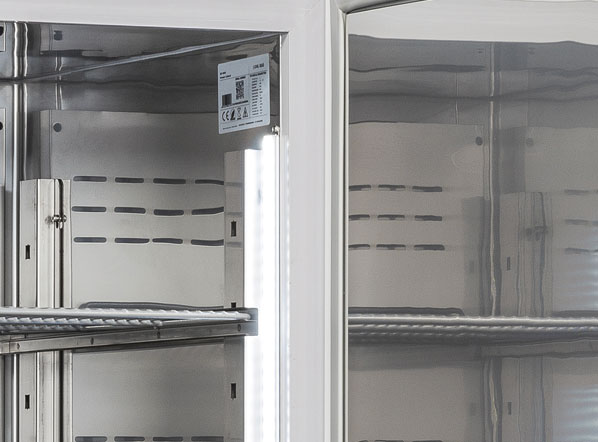

LED light and lock fitted as standard
Door: Self closing and reversible door fitted as standard

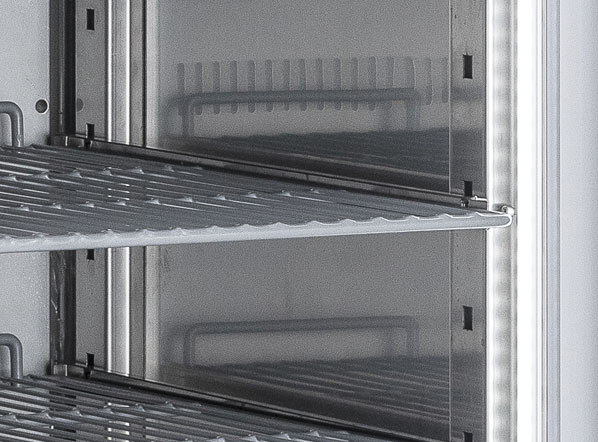

Adjustable shelves GN2/1: 9 Pcs
Plastic thermal-braker as chamber body frame (Hot pipe system)
GN 1/3 Ice cream pans (150mm – Depth) capacity: 46 pcs
360x165x120mm Ice cream pans (5 Litres) capacity: 54 pcs
N.4 Adjustable feet / Castor with brake (Option)
Energy efficiency class: D
| Dimensions | 61074961 × 610743960 cm |
|---|---|
| Commercial capacity | 600 L |
| Energy consumption | 6.381 Kw / 24h |
| External depth | 880 mm |
| External height | 2025 mm |
| External width | 740 mm |
| Internal depth | 710 mm |
| Internal height | 1430 mm |
| Internal width | 580 mm |
| Gross weight | 161 Kg |
| Net weight | 150 Kg |
| Noise level | 48 dB(A) |
| Power | 420 W |
| Temperature range | -18° ~ -25°C |
